Ultra high efficiency cyclone series
Technical description

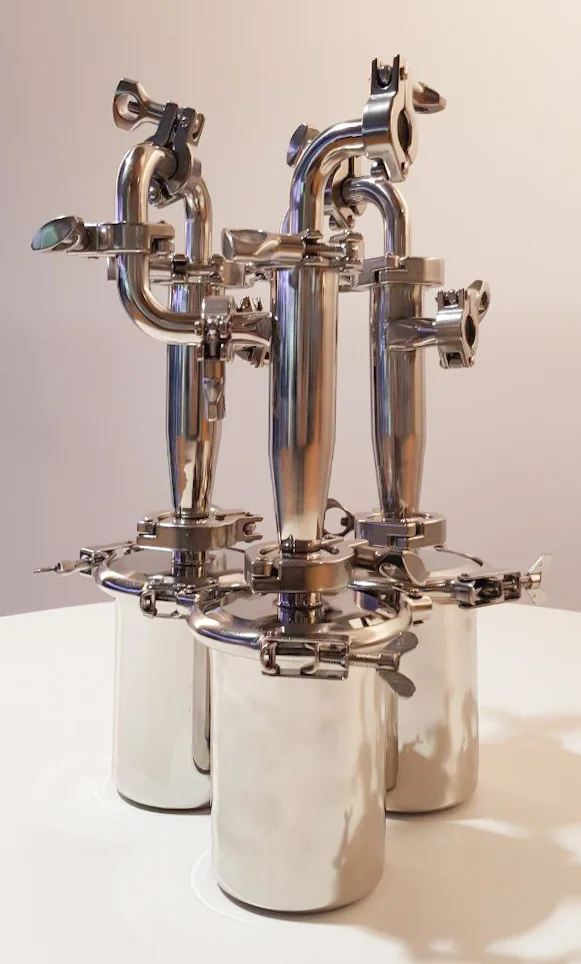

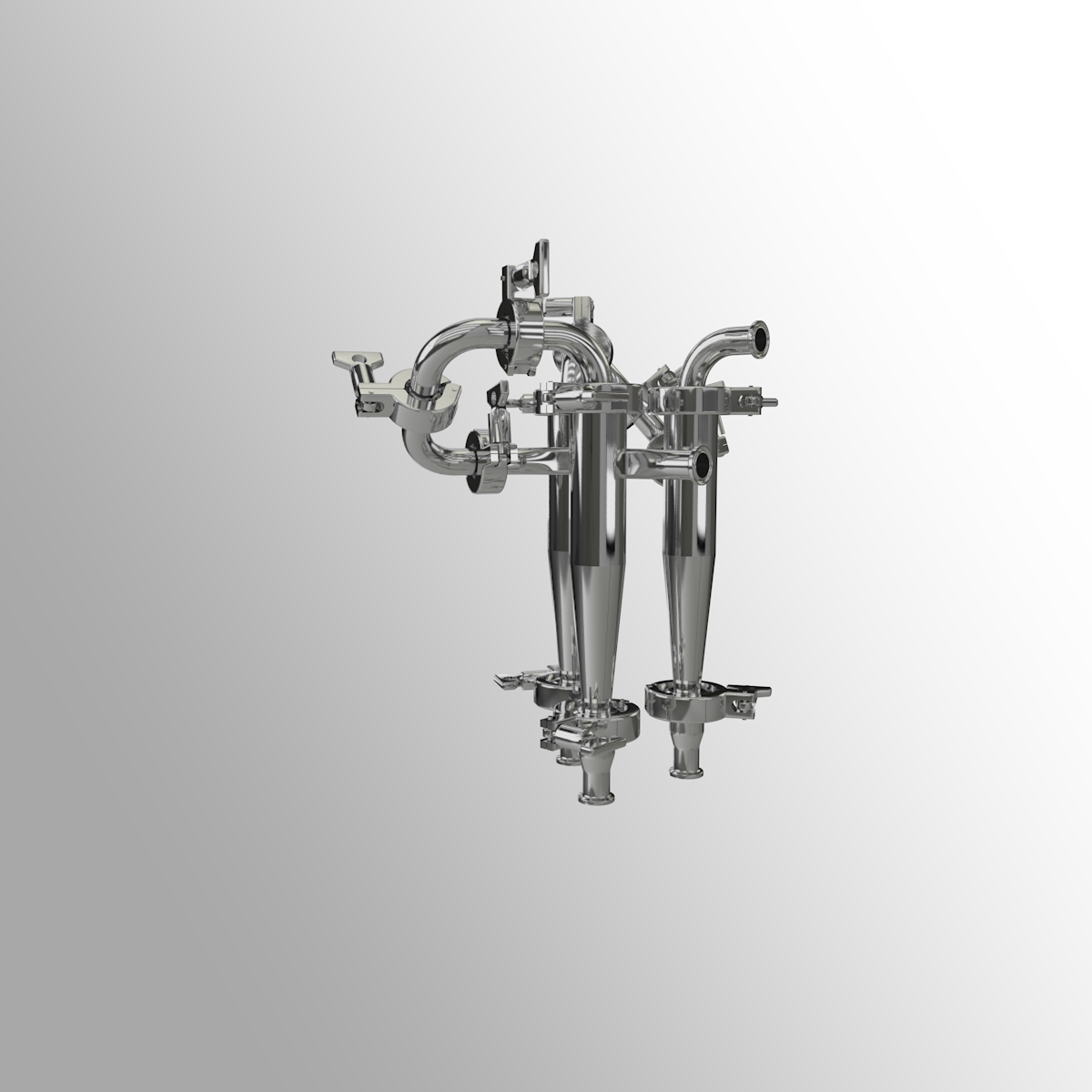

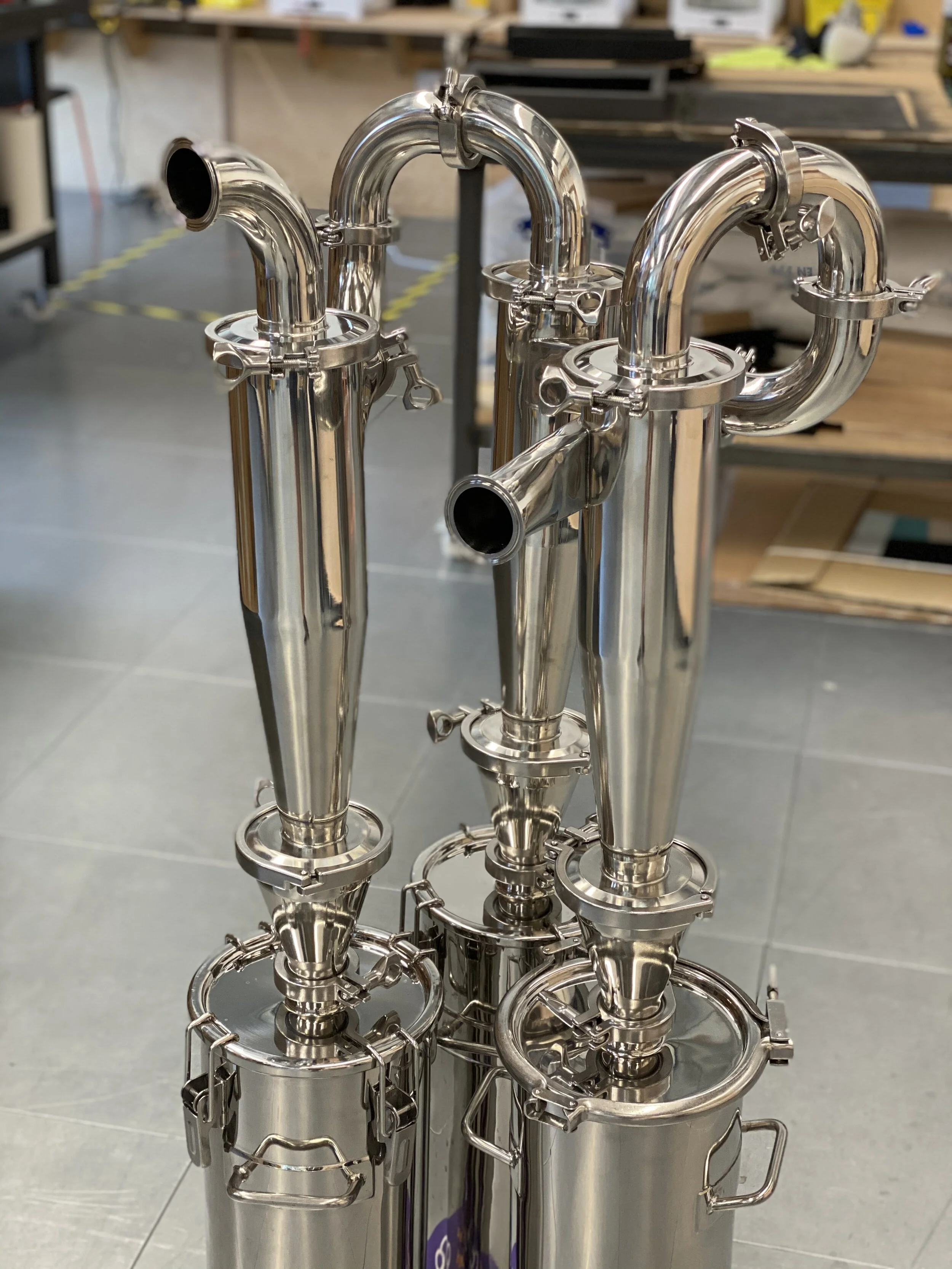

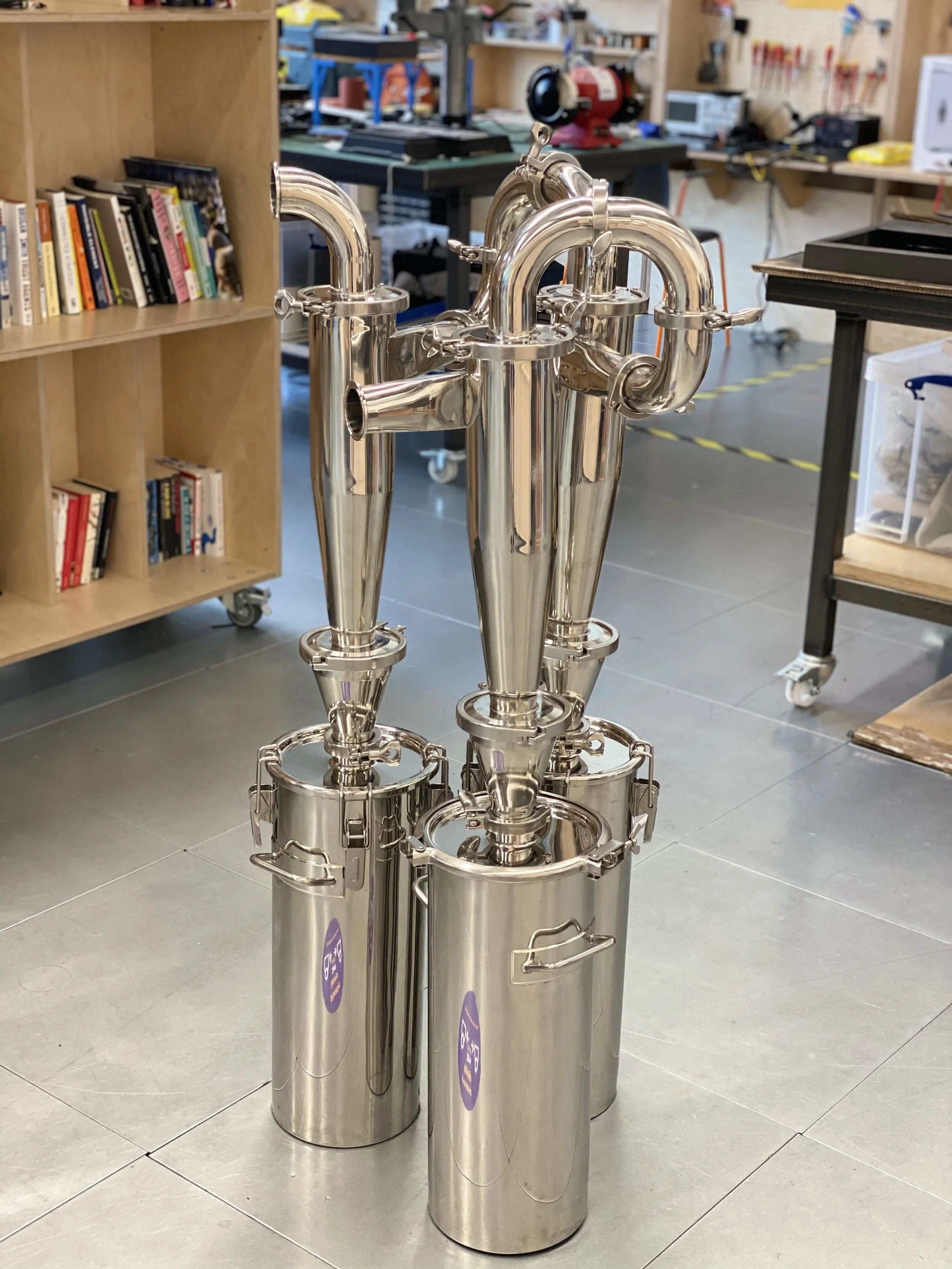

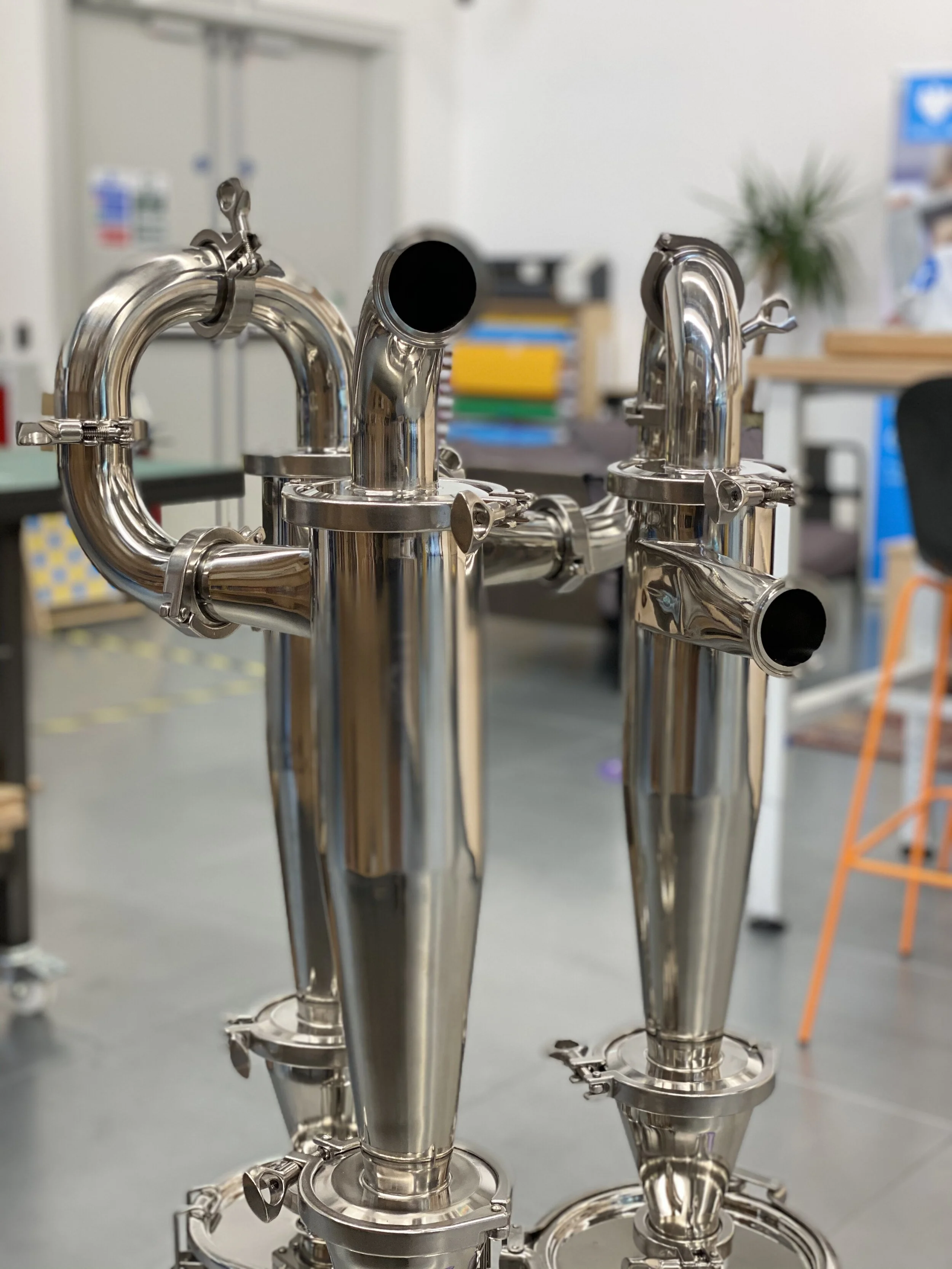

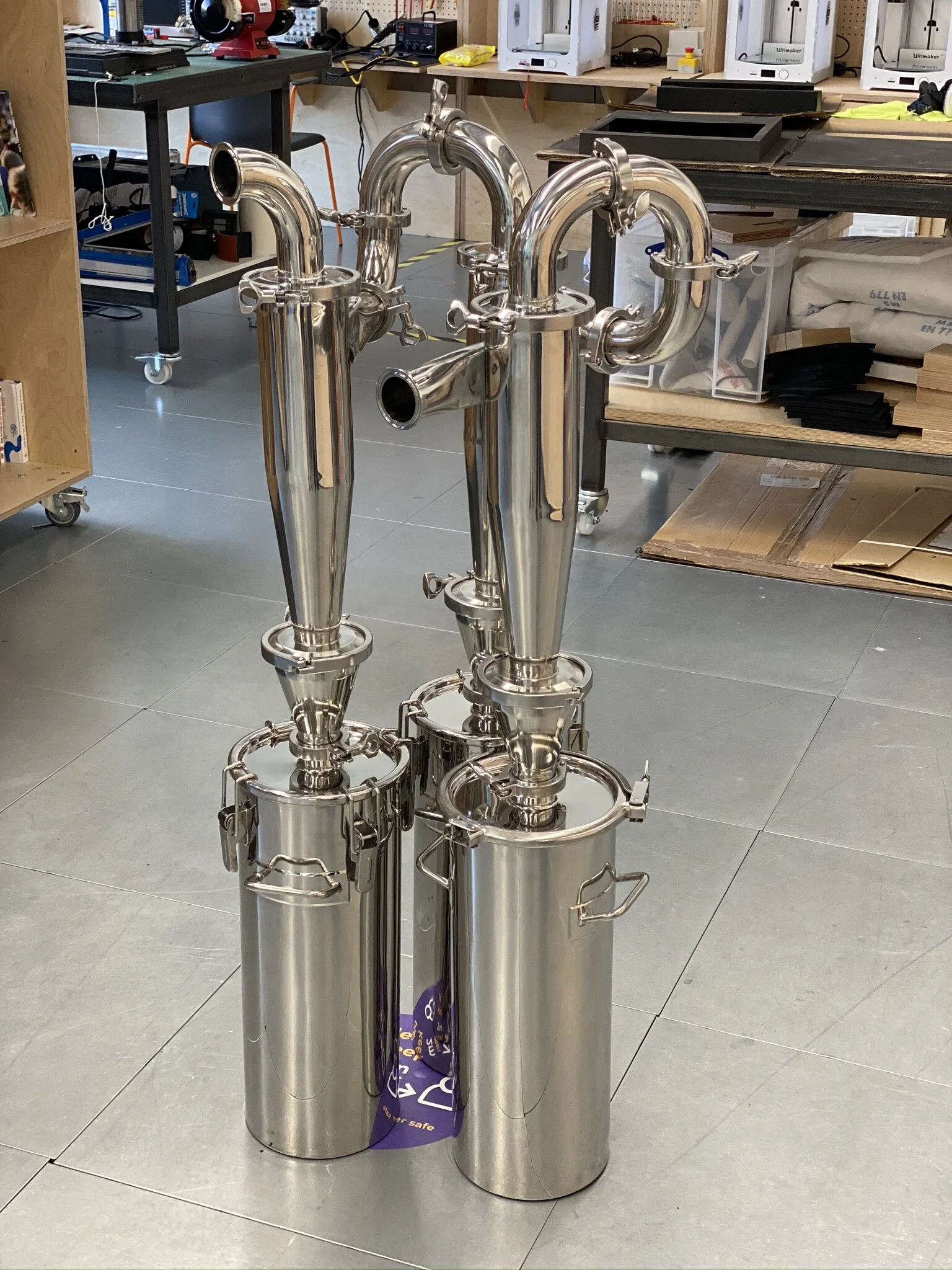

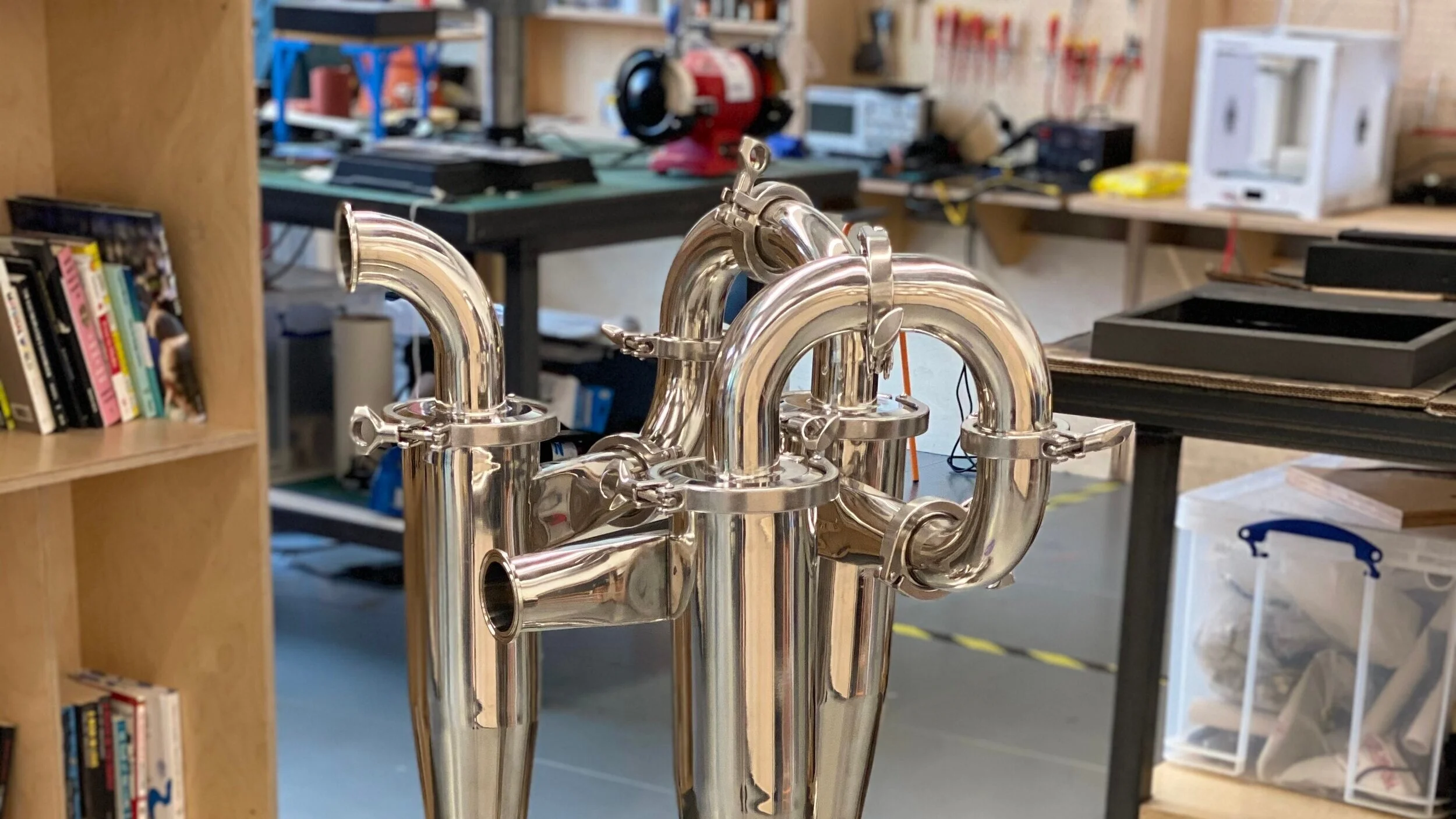

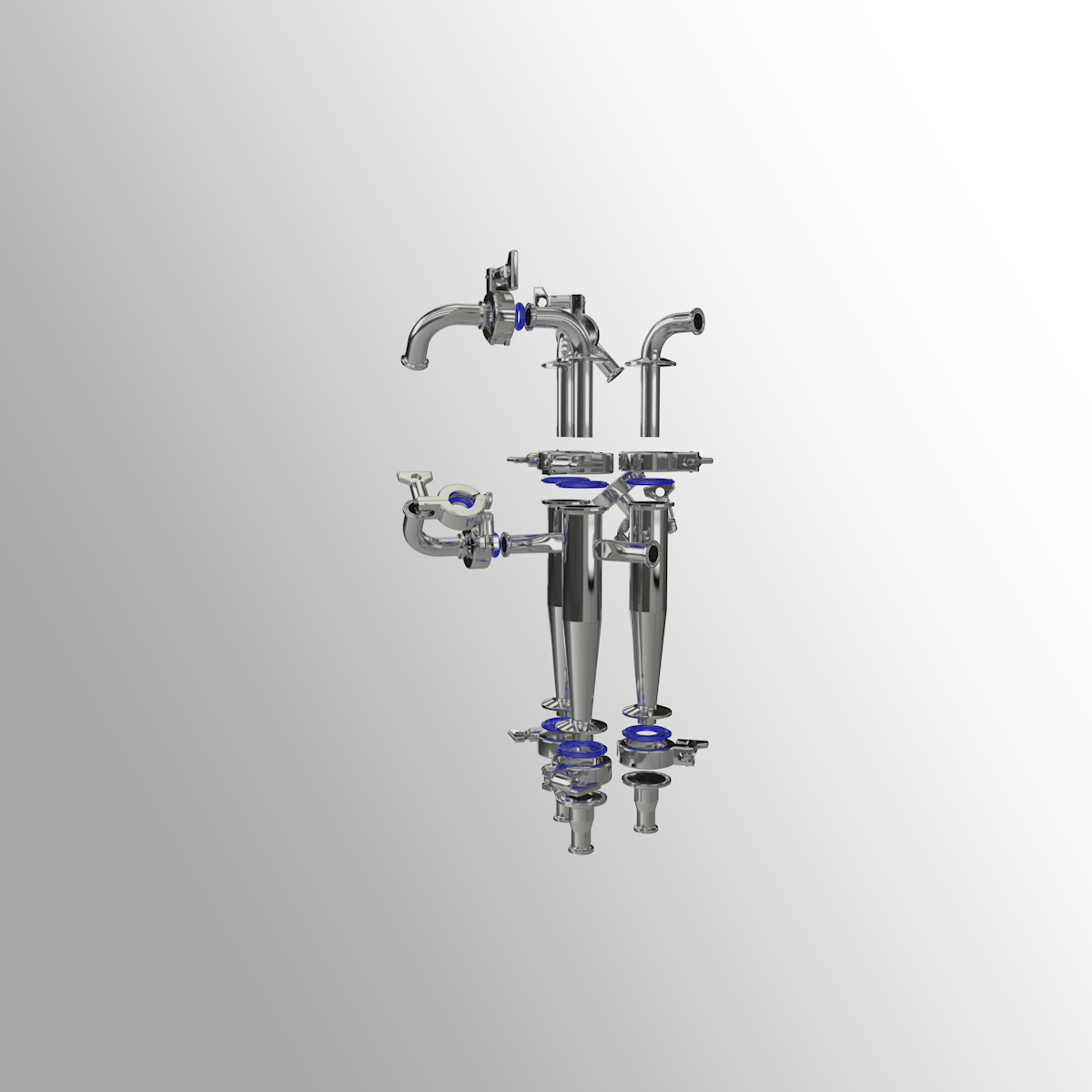

The ALP-UHE-XXXX Cyclone is designed for very small particle separation. Its unique design, which combines three small particle separation cyclones, ensures the ability to reach up to 99% efficiency when using particles as small as 50 microns.
Material: Stainless Steel 316L
Data Table - Pharmaceutical Cyclone Series
| Model | ALP-UHES-01905 | ALP-UHES-02540 | ALP-UHES-03810 | ALP-UHES-05080 | ALP-UHES-07620 | ALP-UHES-10160 | ALP-UHES-15240 | |
|---|---|---|---|---|---|---|---|---|
| Flow rate | m3/hr | 3.5 - 50 | 10 - 70 | 15 - 100 | 20 - 150 | 44 - 300 | 300 - 600 | 500 - 1200 |
| CFM | 2 - 30 | 6 - 40 | 9 - 60 | 12 - 90 | 26 - 180 | 180 - 360 | 300 - 700 | |
| Inflow Tube Diameter | mm | 19.05 | 25.04 | 38.1 | 50.8 | 76.2 | 101.6 | 152.4 |
| in | 3/4" | 1" | 1.5" | 2" | 3" | 4" | 6" | |
| Outflow Tube Diameter | mm | 19.05 | 25.04 | 38.1 | 50.8 | 76.2 | 101.6 | 152.4 |
| in | 3/4" | 1" | 1.5" | 2" | 3" | 4" | 6" |
Data Table - Hydro Cyclone Series
| Model | ALP-UHEH-01905 | ALP-UHEH-02540 | ALP-UHEH-03810 | ALP-UHEH-05080 | ALP-UHEH-07620 | ALP-UHEH-10160 | ALP-UHEH-15240 | |
|---|---|---|---|---|---|---|---|---|
| Flow rate | m3/hr | 1.15 - 16.5 | 3 - 23 | 4.5 - 33 | 6.5 - 50 | 14.5 - 100 | 100 - 200 | 165 - 400 |
| CFM | 7 - 10 | 3 - 20 | 2.5 - 13 | 4 - 30 | 4.5 - 60 | 60 - 120 | 100 - 233 | |
| Inflow Tube Diameter | mm | 19.05 | 25.04 | 38.1 | 50.8 | 76.2 | 101.6 | 152.4 |
| in | 3/4" | 1" | 1.5" | 2" | 3" | 4" | 6" | |
| Outflow Tube Diameter | mm | 25.04 | 38.1 | 50.8 | 63.5 | 101.6 | 152.4 | 203.2 |
| in | 3/4" | 1.5" | 2" | 2.5" | 4" | 6" | 8" |
